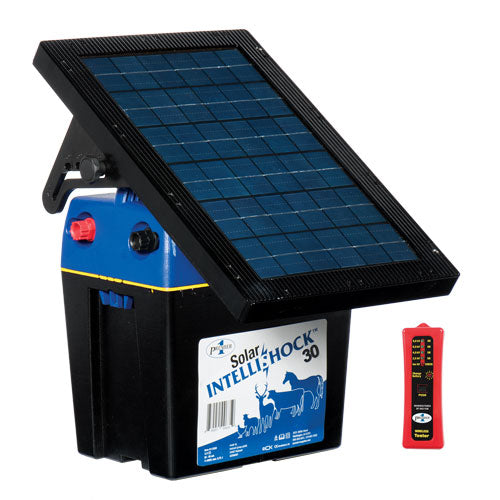

Solar Intellishock Energizer

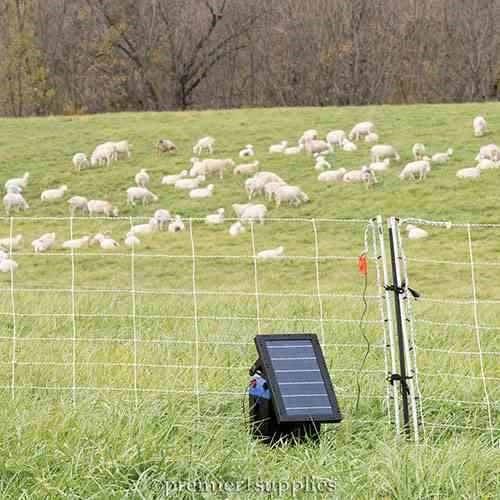

Solar powered 0.30 joule energizer. Portable all-in-one unit arrives ready to power electric fence or netting.

IntelliShock® electric fence chargers are able to reduce energy demand when the fence’s voltage is high–due to fewer weeds touching the fence. This occurs in fall and winter for most fences and occurs all year for some horse, cattle and deer fences. As a result, an IntelliShock unit’s battery is more likely to remain charged through the low sunlight days of autumn and winter.

Benefits of using the Solar IntelliShock 30 include:

• External 110V adapter port for faster plug-in connections for recharging.

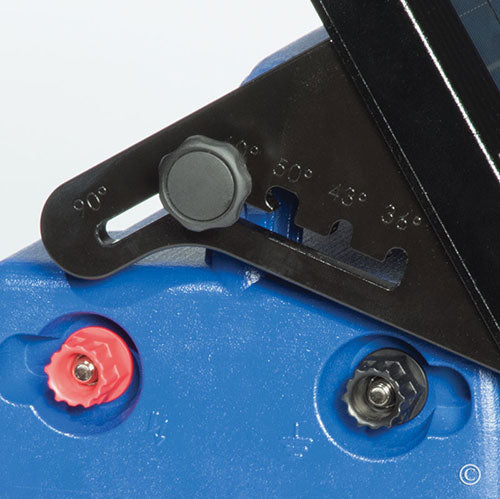

• Solar panel is easy to adjust for seasonal light availability.

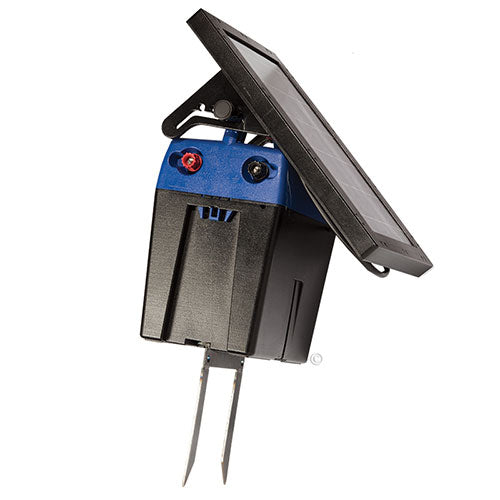

• Included step-in ground stake can also be used to support energizer.
• Easily accessible fence and ground terminals. Fence and ground wiring harness included.
• External 110V port allows the energizer to be operated without a battery and plugged into a 110V power source.
• Large capacity battery for increased life during long periods with low sunlight.
• Highly visible on/off light with low battery indicator.
• Won’t rust. Made from durable UV-treated polycarbonate.


In the box:

• 0.30 joule fence energizer
• 12V 15Ah sealed lead acid battery
• Wiring harness
• 5 watt solar panel with preset tilt angles
• Overcharge regulator
• 110V battery recharger
• U-Spike ground stake (combination ground rod and support stand)
• UV-treated, polycarbonate case with yellow handle

Note: The U-Spike ground stake is shipped inside the energizer case. The wiring harness, battery recharger and user manual are included in the cardboard shipping box.

Joules

• 0.40 stored joules
• 0.30 output joules

Miscellaneous

• Use included ground U-Spike or use at least a 1' galvanized ground rod.
• Draw from a 12V battery is 15–29 milliampere (mA) per hour, depending on weed load.
• 40 pulses per minute.
• When properly used or stored, the battery should last 3-4 years. (Assumes maximum 40% draw down on battery.)

Should power...

• 1–2 rolls of electric netting epending on soil conditions and vegetation.
• 1/2 mile of 3 strand cattle fence.
• 1/4 mile of 5–7 strand sheep fence.

Available for shipment to continental USA addresses only.
